Power Line EMC Filters

FAQ

B84143G0066R110

Product Status
Obsolete
Recommended Alternate Part No. : B84243A8060W000 (Interchangeability is not guaranteed.)
Discontinue Issue Date : Jun.21, 2019
Last Purchase Order Date : Sep.30, 2019
Last Shipment Date : Dec.31, 2019
Power Supply
3-phase/3-Lines
Type
B84143G*R110 (Drive filter)
Features
Brand
EPCOS
Environmental
Compliance Click to learn more about these icons
RoHSReach SVHC-FreeHalogen FreePb Free

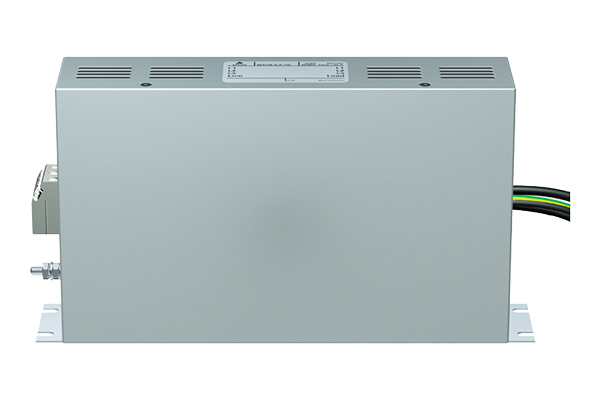

Images are for reference only and show example products.

Size

Package / Mounting
Book
Detail Size Information
Please refer to the data sheet

Electrical Characteristics

Rated Current
66A
Rated Voltage [AC]
520/300V
Rated Voltage [DC]
Withstanding Voltage 1
DC2250V, 2s [line - line]
Withstanding Voltage 2
Leakage Current [Delta connection] (Max.)
Leakage Current [Star connection] (Max.)
5mA [520/300V, 50Hz]
DC Resistance (Typ.)
1.8mΩ

Other

Terminals
Block Terminal
Wire
Operating Temp. Range
-25 to 100°C
Weight
Approx. 4.4kg
Performance
Function
Safety Standard
UL1283
EN60939
