B65671T0100A001

Product Status	Production
Core shape	PM(P)
Feature	ResonanceResonance circuit
Material Name	Ni-Zn
Ferrite Material	K1
Brand	EPCOS
Environmental Compliance Click to learn more about these icons

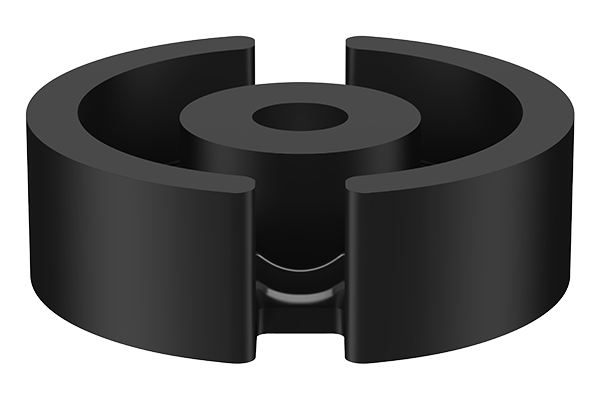

Ferrite Cores B65671T

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC	P 26/16
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Core Factor	0.4mm⁻¹
Effective Cross-Sectional Area	93mm²
Effective Magnetic Path Length	37.2mm
Effective Core Volume	3460mm³
AL Value / (nH / N²)	100 ±3%
Core Loss / (W / set) [Max.]
Air Gap	0.90mm Nom.
Weight	21g

Electrical Characteristics (Material)

Initial Permeability μi	80 Nom.
Saturation Magnetic Flux Density Bs / mT	280 (100°C)
Curie Temperature Tc [Min.]	400°C
Core Loss / (kW / m³) [Max.]
