B65881A0000R097

Product Status	Production
Core shape	PQ(PQ)
Feature	Low LossLow Loss
Material Name	Mn-Zn
Ferrite Material	N97
Brand	EPCOS
Environmental Compliance Click to learn more about these icons

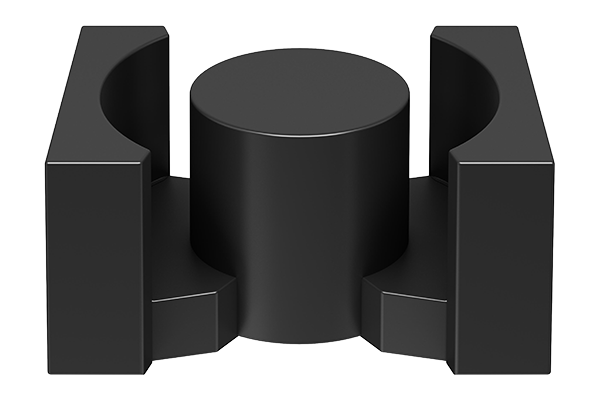

Ferrite Cores B65881A

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC	PQ 35/35
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Core Factor	0.465mm⁻¹
Effective Cross-Sectional Area	171mm²
Effective Magnetic Path Length	79.7mm
Effective Core Volume	13650mm³
AL Value / (nH / N²)	4700 +30,-20%
Core Loss / (W / set) [Max.]	7.1 (200mT, 100kHz, 100°C)
Air Gap	0 mm
Weight	74g

Electrical Characteristics (Material)

Initial Permeability μi	2300 Nom.
Saturation Magnetic Flux Density Bs / mT	410 (100°C)
Curie Temperature Tc [Min.]	230°C
Core Loss / (kW / m³) [Max.]	300
