B66365G0500X127

Product Status	Production
Core shape	E(ETD)
Feature	GeneralFor general purpose
Material Name	Mn-Zn
Ferrite Material	N27
Brand	TDK
Environmental Compliance Click to learn more about these icons

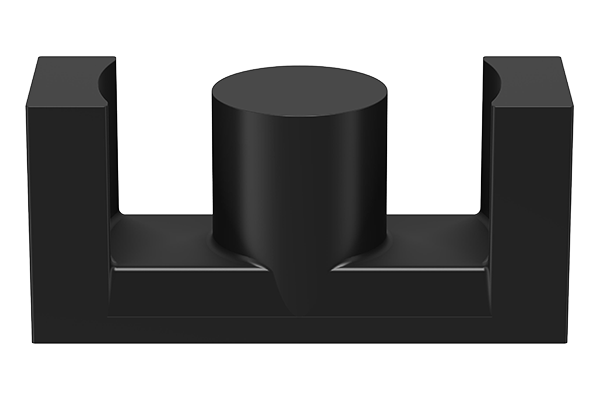

Ferrite Cores B66365G

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC	ETD 44/22/15
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Core Factor	0.6mm⁻¹
Effective Cross-Sectional Area	173mm²
Effective Magnetic Path Length	103mm
Effective Core Volume	17800mm³
AL Value / (nH / N²)	438 Nom.
Core Loss / (W / set) [Max.]
Air Gap	0.50mm ±0.05mm
Weight	94g

Electrical Characteristics (Material)

Initial Permeability μi	2000 Nom.
Saturation Magnetic Flux Density Bs / mT	410 (100°C)
Curie Temperature Tc [Min.]	220°C
Core Loss / (kW / m³) [Max.]	920
