B82732R2142B030

Product Status	Production
Type	B82732R
Application	General use
Function / Feature	CommonCommon Mode ULUL Certificate ENEC(VDE)ENEC (VDE) Certificate
Number of Lines	Double Choke
Brand	EPCOS
Environmental Compliance Click to learn more about these icons

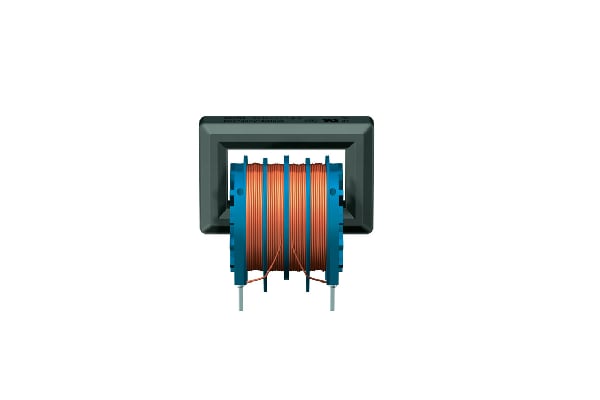

Power Line Chokes:B82732R

Images are for reference only and show example products.

Design & Size

Design	Current-compensated D core choke
Length	24.00mm Max.
Width	16.50mm Max.
Height	23.50mm Max.

Electrical Characteristics

Inductance	10mH
Rated Current	1.4A
Rated Temperature	40°C
DC Resistance (Typ.)	300mΩ
Rated Voltage [AC]	250Vrms
Rated Voltage [DC]

Other

Operating Temp. Range (Including Self-Temp. Rise)	-40 to 125°C
AEC-Q200	NO
UL File Number	E70122
UL1446 Insulation System
ENEC (VDE) File Number	40004409
Remarks	Recyclable UL+ENEC(VDE) approvals vertical version
Further Details	Please refer to the data sheet
