B65671D0000R048

Product Status	Production
Core shape	PM(P)
Feature	Low Temp CoefLow temperature coefficient
Material Name	Mn-Zn
Ferrite Material	N48
Brand	EPCOS
Environmental Compliance Click to learn more about these icons

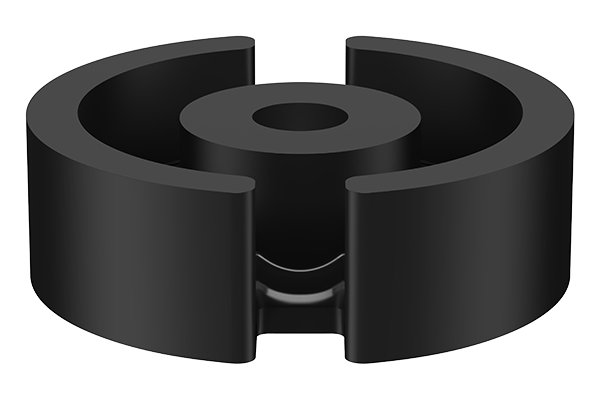

Ferrite Cores B65671D

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC	P 26/16
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Core Factor	0.4mm⁻¹
Effective Cross-Sectional Area	93mm²
Effective Magnetic Path Length	37.2mm
Effective Core Volume	3460mm³
AL Value / (nH / N²)	4900 +30,-20%
Core Loss / (W / set) [Max.]
Air Gap	0 mm
Weight	21g

Electrical Characteristics (Material)

Initial Permeability μi	2300 Nom.
Saturation Magnetic Flux Density Bs / mT	310 (100°C)
Curie Temperature Tc [Min.]	170°C
Core Loss / (kW / m³) [Max.]

Distributor Stock Info

Save Page as PDF

Distributor List

Contact Us

Part Number: B65671D0000R048

Part Number	Distributor	Buy from Distributor	Stock Quantity	Country	Info Last Updated
B65671-D0000-R048	Allstar Magnetics Click to know about this distributor		191	US	2026/03/27
B65671D0000R048	Farnell, An Avnet Company Click to know about this distributor	Buy Now	332	Multiple	2026/02/17
B65671D0000R048	Arrow Electronics (UK) Ltd. Click to know about this distributor	Buy Now	1,000	Multiple	2026/03/31
B65671D0000R048	Buerklin GmbH & Co. Click to know about this distributor	Buy Now	828	DE	2026/03/31
B65671D0000R048	DigiKey Click to know about this distributor	Buy Now	1,999	Multiple	2026/03/31
B65671D0000R048	element14 Click to know about this distributor	Buy Now	332	SG	2026/03/31
B65671D0000R048	Melchioni s.p.a. Click to know about this distributor		400	IT	2026/03/31
B65671D0000R048	Mouser Electronics Inc. Click to know about this distributor	Buy Now	1,517	Multiple	2026/03/31
B65671D0000R048	Newark, An Avnet Company Click to know about this distributor	Buy Now	332	US	2026/03/31

Part Number:

B65671D0000R048

B65671-D0000-R048

Distributor	Allstar Magnetics
Buy from Distributor
Stock Quantity	191
Country	US
Info Last Updated	2026/03/27

B65671D0000R048

Distributor	Farnell, An Avnet Company
Buy from Distributor	Buy Now
Stock Quantity	332
Country	Multiple
Info Last Updated	2026/02/17

B65671D0000R048

Distributor	Arrow Electronics (UK) Ltd.
Buy from Distributor	Buy Now
Stock Quantity	1,000
Country	Multiple
Info Last Updated	2026/03/31

B65671D0000R048

Distributor	Buerklin GmbH & Co.
Buy from Distributor	Buy Now
Stock Quantity	828
Country	DE
Info Last Updated	2026/03/31

B65671D0000R048

Distributor	DigiKey
Buy from Distributor	Buy Now
Stock Quantity	1,999
Country	Multiple
Info Last Updated	2026/03/31

B65671D0000R048

Distributor	element14
Buy from Distributor	Buy Now
Stock Quantity	332
Country	SG
Info Last Updated	2026/03/31

B65671D0000R048

Distributor	Melchioni s.p.a.
Buy from Distributor
Stock Quantity	400
Country	IT
Info Last Updated	2026/03/31

B65671D0000R048

Distributor	Mouser Electronics Inc.
Buy from Distributor	Buy Now
Stock Quantity	1,517
Country	Multiple
Info Last Updated	2026/03/31

B65671D0000R048

Distributor	Newark, An Avnet Company
Buy from Distributor	Buy Now
Stock Quantity	332
Country	US
Info Last Updated	2026/03/31

Please check the latest information on each distributor's website. Powered netCOMPONENTS
