B65803N0160A048

Product Status
Production
Core shape
RM(RM)
Feature
Low Temp CoefLow temperature coefficient
TelecomFor Telecommunication
Material Name
Mn-Zn
Ferrite Material
N48
Brand
EPCOS
Environmental
Compliance Click to learn more about these icons
RoHSPb Free

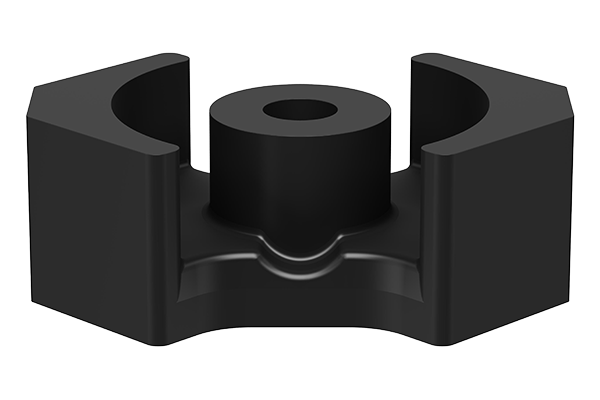

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC
RM 4
Detail Size Information
Please refer to the data sheet

Electrical Characteristics

Core Factor
1.9mm⁻¹
Effective Cross-Sectional Area
11mm²
Effective Magnetic Path Length
21mm
Effective Core Volume
231mm³
AL Value / (nH / N²)
160 ±3%
Core Loss / (W / set) [Max.]
Air Gap
0.06mm Nom.
Weight
1.45g

Electrical Characteristics (Material)

Initial Permeability μi
2300 Nom.
Saturation Magnetic Flux Density Bs / mT
310 (100°C)
Curie Temperature Tc [Min.]
170°C
Core Loss / (kW / m³) [Max.]
