Ferrite Cores

FAQ

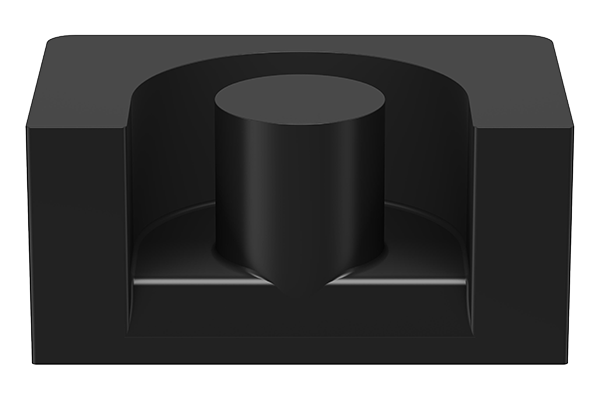

B65841A0063A045

Product Status
Production
Core shape
EP(EP)
Feature
High BsHigh Bs
Material Name
Mn-Zn
Ferrite Material
N45
Brand
EPCOS
Environmental
Compliance Click to learn more about these icons
RoHSPb Free

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC
EP 10
Detail Size Information
Please refer to the data sheet

Electrical Characteristics

Core Factor
1.7mm⁻¹
Effective Cross-Sectional Area
11.3mm²
Effective Magnetic Path Length
19.2mm
Effective Core Volume
217mm³
AL Value / (nH / N²)
63 ±3%
Core Loss / (W / set) [Max.]
Air Gap
0.22mm Nom.
Weight
2.8g

Electrical Characteristics (Material)

Initial Permeability μi
3800 Nom.
Saturation Magnetic Flux Density Bs / mT
435 (100°C)
Curie Temperature Tc [Min.]
255°C
Core Loss / (kW / m³) [Max.]
