B65859A0000R057

Product Status	Production
Core shape	EP(EPX)
Feature	TelecomFor Telecommunication
Material Name	Mn-Zn
Ferrite Material	T57
Brand	TDK
Environmental Compliance Click to learn more about these icons

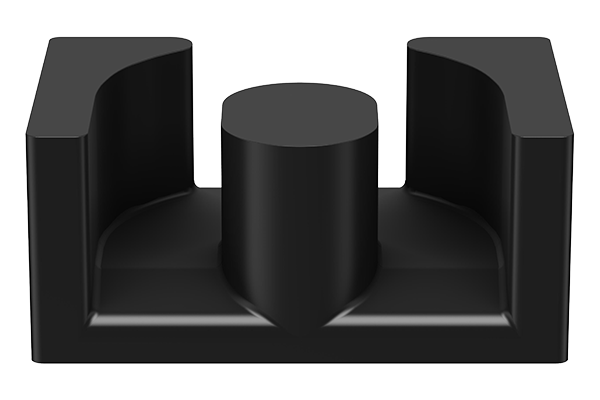

Ferrite Cores B65859

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC	EPX 10
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Core Factor	1.37mm⁻¹
Effective Cross-Sectional Area	15.9mm²
Effective Magnetic Path Length	21.7mm
Effective Core Volume	345mm³
AL Value / (nH / N²)	2000 +30,-20%
Core Loss / (W / set) [Max.]
Air Gap	0 mm
Weight	2.8g

Electrical Characteristics (Material)

Initial Permeability μi	4000 Nom.
Saturation Magnetic Flux Density Bs / mT	270 (100°C)
Curie Temperature Tc [Min.]	140°C
Core Loss / (kW / m³) [Max.]
