B66486G0000X187

Product Status	Production
Core shape	E(EE)
Feature	GeneralFor general purpose
Material Name	Mn-Zn
Ferrite Material	N87
Brand	TDK
Environmental Compliance Click to learn more about these icons

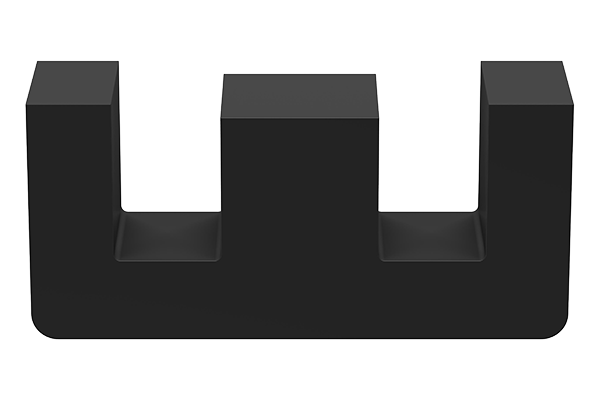

Ferrite Cores B66486

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC	E/22/15/6
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Core Factor	1.78mm⁻¹
Effective Cross-Sectional Area	35.5mm²
Effective Magnetic Path Length	63.2mm
Effective Core Volume	2250mm³
AL Value / (nH / N²)	1200 ±25%
Core Loss / (W / set) [Max.]	1.2 (200mT, 100kHz, 100°C)
Air Gap
Weight	11.8g

Electrical Characteristics (Material)

Initial Permeability μi	2200 Nom.
Saturation Magnetic Flux Density Bs / mT	390 (100°C)
Curie Temperature Tc [Min.]	210°C
Core Loss / (kW / m³) [Max.]	375
