B72250L0131K102

Product Status	Production
Applications	IndustrialIndustrial
Type	LS50K130PK2
Brand	TDK
Environmental Compliance Click to learn more about these icons

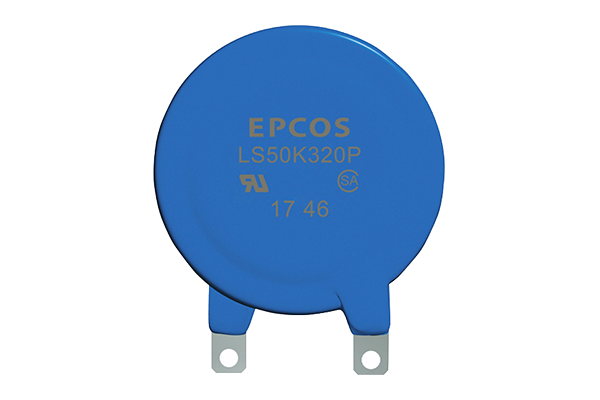

Voltage Protection Devices,Strap Varistors:LS50_PK2

Images are for reference only and show example products.

3D Model

Size

Body Width	57.00mm Max.
Body Height	75.50mm Max.
Body Thickness	8.10mm Max.
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Maximum Operating Voltage [DC]	170V
Maximum Operating Voltage [AC]	130Vrms
Nominal DischargeCurrent In [8/20μs, 15times]
Maximum Surge Current Imax [8/20µs, 1time]	75kA
Energy Absorption	490J
Capacitance (Typ.)	10.5nF

Other

Operating Temperature Range	Please refer to the data sheet
Soldering Method	Please refer to the document (Soldering Instructions)
Safety Standard	Please refer to the document (Approvals)
Packing Information	Please refer to the document (Taping, Packaging and Lead Configuration)
