IMU (Inertial Measurement Unit)

ICM-42670-P

Product Status
Production
Applications
Commercial Grade
Market
Wearable
IoT
Axis
6-Axis
Features
Series
ICM
Comments
Cost-Optimal Lowest power IMU with Advanced Motion Features
Brand
InvenSense
Environmental
Compliance Click to learn more about these icons
RoHSReach SVHC-FreeHalogen FreePb Free

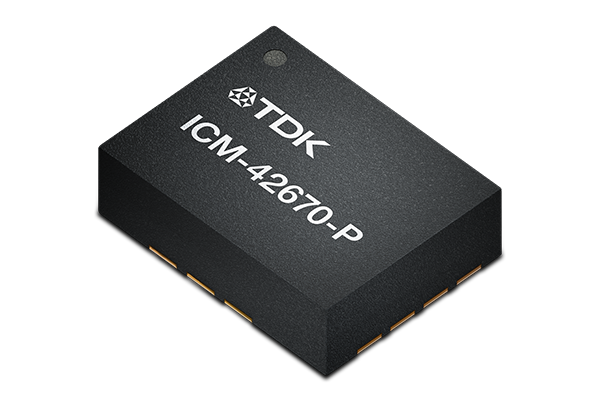

Images are for reference only and show example products.

Size

Length(L)
2.50mm Nom.
Width(W)
3.00mm Nom.
Thickness(T)
0.76mm Nom.

Electrical Characteristics

Digital Output
I2C
I3C
SPI
VDD Power Supply / V
VDDIO I/O Power Supply / V
Gyro FSR
±250/500/1000/2000
Gyro Sensitivity Error
±1%
Gyro Rate Noise
0.007dps/√Hz
Accel FSR
±2/4/8/16
Accel Sensitivity Error
±1%
Accel Noise
100μg/√Hz
Compass FSR
Pressure Sensor Relative Accuracy
Pressure Sensor Noise

Other

Operating Temperature Range
-40 to 85°C
AEC-Q100
NO
Packing
Package Quantity
Weight
