Embedded Motor Controllers

Product Top Page

Part Number List

HVC5223C

Product Status	In Development
Applications	Automotive Grade
Features 1	3 Integrated Half-Bridges
Features 2	High-Performance 32-Bit Arm® Cortex®-M3 Core
Interface	LIN UART SPI
Series	HVC
Brand	Micronas
Environmental Compliance Click to learn more about these icons

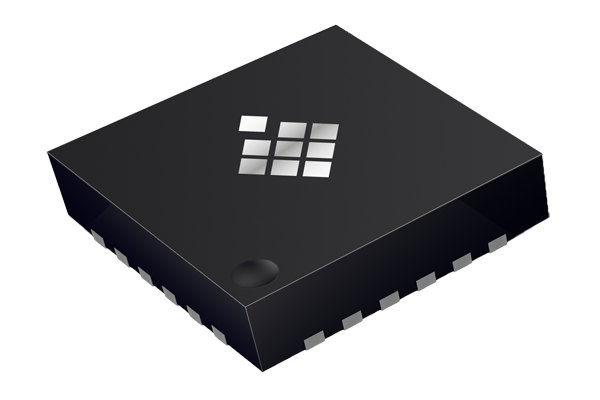

Embedded Motor Controllers QFN24

Images are for reference only and show example products.

Size

Package	QFN24
Detail Size Information

Electrical Characteristics

Input Voltage

6 to 18V

Other

Operating Temp. Range	-40 to 125°C
AEC-Q100	YES
Packing
Weight	0.07g
