B82725S2243B040

Product Status	Production
Type	B82725S2*B
Application	General use
Function / Feature	CommonCommon Mode
Number of Lines	Double Choke
Brand	EPCOS
Environmental Compliance Click to learn more about these icons

Power Line Chokes:B82725S2*B*

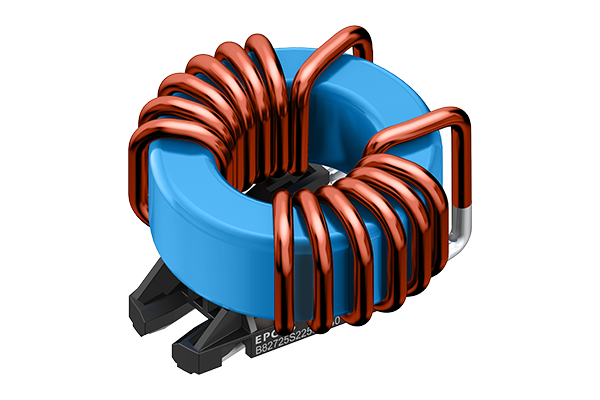

Images are for reference only and show example products.

3D Model

Design & Size

Design	Current-compensated ring core choke
Length	40.00mm Max.
Width	38.00mm Max.
Height	22.30mm ±0.70mm

Electrical Characteristics

Inductance	820μH
Rated Current	24A
Rated Temperature	70°C
DC Resistance (Typ.)	2.21mΩ
Rated Voltage [AC]	250Vrms
Rated Voltage [DC]

Other

Operating Temp. Range (Including Self-Temp. Rise)	-40 to 125°C
AEC-Q200	NO
UL File Number
UL1446 Insulation System
ENEC (VDE) File Number
Remarks	SMD hight-current horizontal suitable for reflow soldering
Further Details	Please refer to the data sheet
