B82726S3223A340

Product Status	Production
Type	B82726S3223A340
Application	General use
Function / Feature	CommonCommon Mode UL1446UL1446 Insulation System
Number of Lines	Double Choke
Brand	EPCOS
Environmental Compliance Click to learn more about these icons

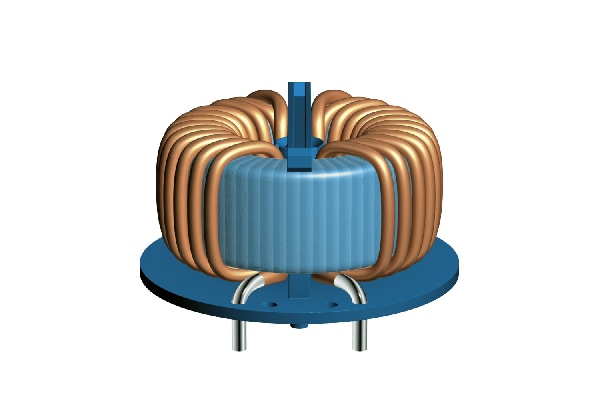

Power Line Chokes:B82726S3223A340

Images are for reference only and show example products.

Design & Size

Design	Current-compensated ring core choke
Length	55.00mm Max.
Width	55.00mm Max.
Height	34.00mm Max.

Electrical Characteristics

Inductance	1.7mH
Rated Current	25A
Rated Temperature	70°C
DC Resistance (Typ.)	2.75mΩ
Rated Voltage [AC]	300Vrms
Rated Voltage [DC]	550V

Other

Operating Temp. Range (Including Self-Temp. Rise)	-40 to 125°C
AEC-Q200	NO
UL File Number
UL1446 Insulation System	E320370: Class 155(F)
ENEC (VDE) File Number
Remarks	No adhesives UL 1446 Class 155(F) Insulation System max. 22.5 A at +80 °C / 21 A at +85 °C ambient
Further Details	Please refer to the data sheet
