B66383G0000X187

Product Status	Production
Core shape	E(EE)
Feature	GeneralFor general purpose
Material Name	Mn-Zn
Ferrite Material	N87
Brand	EPCOS
Environmental Compliance Click to learn more about these icons

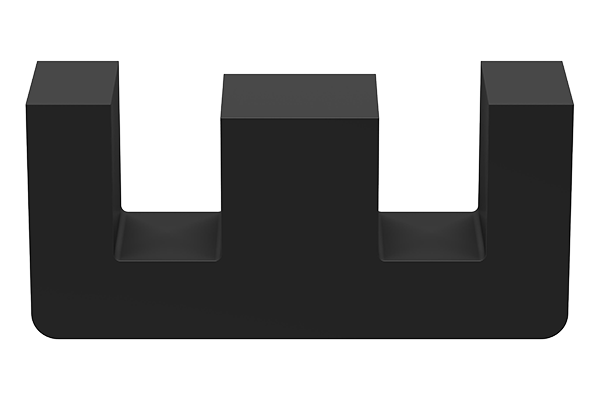

Ferrite Cores B66383

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC	E 47/20/16
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Core Factor	0.38mm⁻¹
Effective Cross-Sectional Area	233mm²
Effective Magnetic Path Length	89mm
Effective Core Volume	20700mm³
AL Value / (nH / N²)	5600 +30,-20%
Core Loss / (W / set) [Max.]	11.1 (200mT, 100kHz, 100°C)
Air Gap	0 mm
Weight	106g

Electrical Characteristics (Material)

Initial Permeability μi	2200 Nom.
Saturation Magnetic Flux Density Bs / mT	390 (100°C)
Curie Temperature Tc [Min.]	210°C
Core Loss / (kW / m³) [Max.]	375
