CLT42-32N

New Product

Product Status	Preliminary
Applications	Automotive Grade
Feature	No DirectivityNo Directivity ShieldMagnetic Shield Molded MetalMolded Metal
Series \| Type
Brand	TDK
Environmental Compliance Click to learn more about these icons

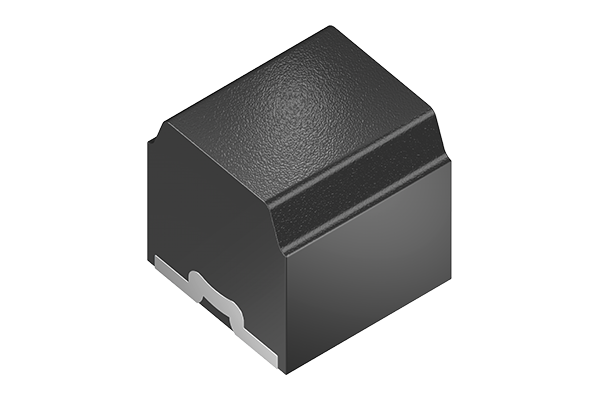

Inductors,Coils:CLT42

Images are for reference only and show example products.

Size

Length(L)	4.20mm ±0.20mm
Width(W)	4.20mm ±0.20mm
Thickness \| Height	4.20mm ±0.20mm
Recommended Land Pattern (A)	1.30mm Nom.
Recommended Land Pattern (B)	2.40mm Nom.
Recommended Land Pattern (C)	4.10mm Nom.

Electrical Characteristics

Inductance	32nH ±20% at 1MHz
Rated Current (L Change) [Typ.]	124A (30% Down)
Rated Current (L Change) [Max.]
Rated Current (Temperature Rise) [Typ.]	70A (40°C Rise)
Rated Current (Temperature Rise) [Max.]
DC Resistance [Typ.]	200μΩ
DC Resistance [Max.]	230μΩ
Rated Voltage [Max.]
Self Resonant Frequency [Min.]
Self Resonant Frequency [Typ.]
Q [Min.]
Q [Typ.]

Other

Operating Temp. Range	-40 to 165°C (Including Self-Temp. Rise)
Soldering Method	Reflow
AEC-Q200	NO
Packing	Embossed (Plastic)Taping [330mm Reel, Tape width 12mm]
Package Quantity	1500pcs
Weight	0.44g
