AC-DC Power Supplies

FAQ

CM4

Sales Region
Worldwide (except Japan)
Series
Model
Status
ObsoleteObsolete
Discontinue Issue Date : May.11, 2022
Last Purchase Order Date : Sep.30, 2022
Last Shipment Date : Mar.31, 2023
Feature
2MOOP
Designed to meet MIL-STD-461
Medical certification
Options
Product is fully configurable
Option Lineup
Recommended EMC Filter  ?
Accessories
Brand
TDK-Lambda

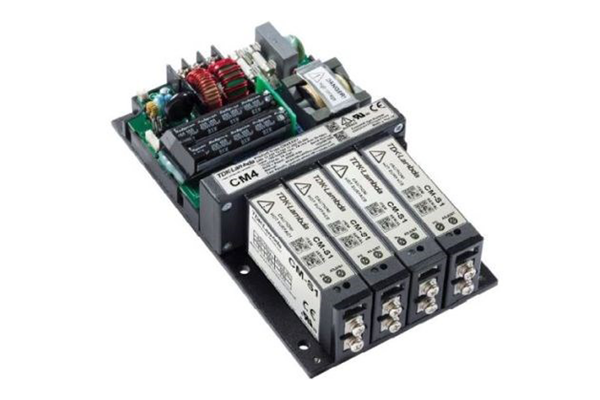

  • Switching Power Supply,AC-DC Power Supplies:CM4

Images are for reference only and show example products.

Quick Product Finder

Click 'Configure Now' to select your perfect solution
Configure Now

Electrical Characteristics

Input
Single-phase
Input Voltage Range[AC]
85 to 264Vac
120 to 264Vac
Efficiency
90% Typ.
Total Maximum Output Power
600W
Total Maximum Peak Power
750W
Number of Outputs
Up to 4

Package Type & Size

Package / Mounting
Open frame
Industry Standard Size
Width(W)
177.8mm Nom. (7.00in Nom.)
Height(H)
41mm Nom. (1.61in Nom.)
Depth(D)
101.6mm Nom. (4.00in Nom.)
Weight

Other

Operating Temp. Range
-40 to 70°C
Cooling
Forced air
Convection
Conduction
Safety Standard(Certified)
IEC60601-1
CSA60601-1
EN60601-1
ES60601-1
UL60601-1
IEC60950-1
CSA60950-1
EN60950-1
UL60950-1
Safety Standard(Conformed)
Remarks
This page only shows representative characteristics. Please refer to the technical data for detailed specifications and conditions.
