B72220Q0271K101

Product Status	Production
Applications	ConsumerConsumer DataData Processing IndustrialIndustrial
Type	Q20K275
Brand	EPCOS
Environmental Compliance Click to learn more about these icons

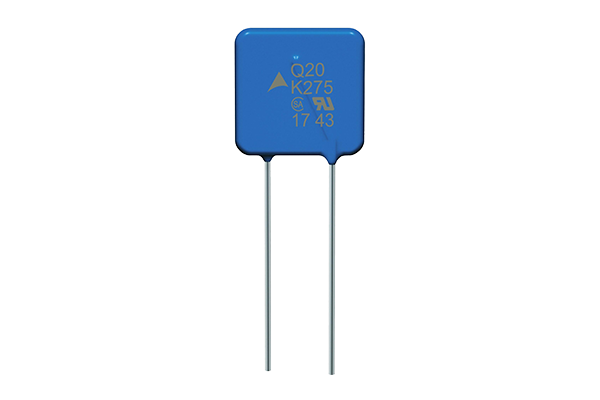

Voltage Protection Devices,Leaded Disk Varistors:Q20

Images are for reference only and show example products.

3D Model

Size

Lead Spacing (e)	10.00mm ±1.00mm
Body Width (w)	22.50mm Max.
Body Thickness (th)	5.80mm Max.
Body Height (h)	27.00mm Max.
Lead Length (l)	25.00mm Min.
Lead Diameter (d)	1.00mm ±0.05mm
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Maximum Operating Voltage [DC]	350V
Maximum Operating Voltage [AC]	275Vrms
Nominal DischargeCurrent In [8/20μs, 15times]	5kA
Maximum Surge Current Imax [8/20µs, 1time]	15kA
Energy Absorption	215J
Capacitance (Typ.)	1.15nF

Other

Operating Temperature Range	Please refer to the data sheet
Soldering Method	Please refer to the document (Soldering Instructions)
Safety Standard	Please refer to the document (Approvals)
AEC-Q200	NO
Packing Information	Please refer to the document (Taping, Packaging and Lead Configuration)
