B82625B2502M001

Product Status	Production
Type	B82625B
Application	General use
Function / Feature	DifferentialDifferential Mode ENEC(VDE)ENEC (VDE) Certificate
Number of Lines	Double Choke
Brand	EPCOS
Environmental Compliance Click to learn more about these icons

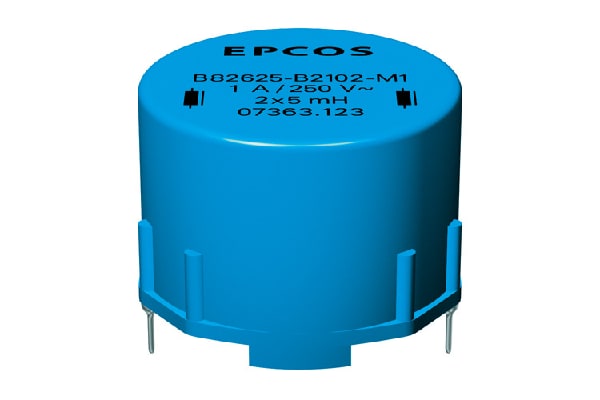

Power Line Chokes:B82625B

Images are for reference only and show example products.

Design & Size

Design	Ring core choke with powder core (double)
Length	44.00mm Max.
Width	42.40mm Max.
Height	30.00mm Max.

Electrical Characteristics

Inductance	250μH
Rated Current	5A
Rated Temperature	40°C
DC Resistance (Typ.)	72mΩ
Rated Voltage [AC]	250Vrms
Rated Voltage [DC]	350V

Other

Operating Temp. Range (Including Self-Temp. Rise)	-40 to 125°C
AEC-Q200	NO
UL File Number
UL1446 Insulation System
ENEC (VDE) File Number	40030229
Remarks	ENEC(VDE) approval Lead spacing 15 x 40 (mm) suppression of differential-mode interferences
Further Details	Please refer to the data sheet
