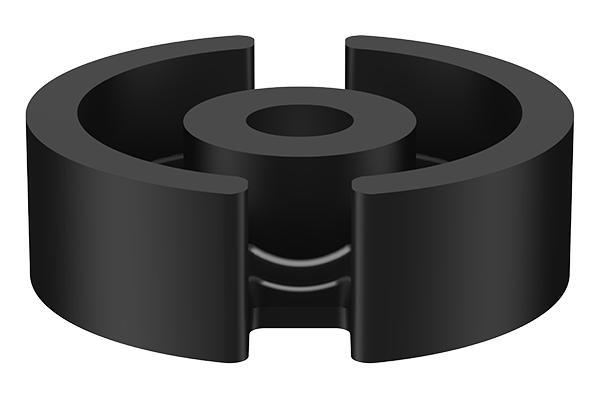

B65651T0040A001

Product Status	Production
Core shape	PM(P)
Feature	ResonanceResonance circuit
Material Name	Ni-Zn
Ferrite Material	K1
Brand	TDK
Environmental Compliance Click to learn more about these icons

Ferrite Cores B65651T

Images are for reference only and show example products.

Size

Size (IEC 62317) AxBxC	P 18/11
Detail Size Information	Please refer to the data sheet

Electrical Characteristics

Core Factor	0.6mm⁻¹
Effective Cross-Sectional Area	43mm²
Effective Magnetic Path Length	25.9mm
Effective Core Volume	1114mm³
AL Value / (nH / N²)	40 ±3%
Core Loss / (W / set) [Max.]
Air Gap	1.60mm Nom.
Weight	6g

Electrical Characteristics (Material)

Initial Permeability μi	80 Nom.
Saturation Magnetic Flux Density Bs / mT	280 (100°C)
Curie Temperature Tc [Min.]	400°C
Core Loss / (kW / m³) [Max.]
