D1SE240-48-A5

New Product

Product Status	Production
Sales Region	Worldwide (except Japan)
Series	D1SE
Model	D1SE240
Feature	Peak power capability BIS Certified
Options	DIN rail mountable Harsh environment DC-OK signal
Option Lineup	Please refer to here.
Recommended EMC Filter
Accessories	Please refer to here.
Brand	TDK-Lambda
Environmental Compliance Click to learn more about these icons

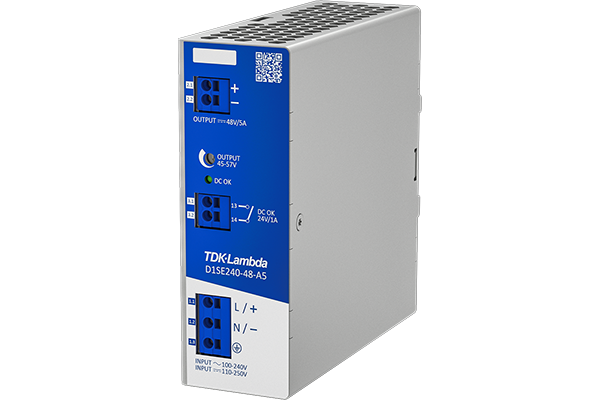

Switching Power Supply,AC-DC Power Supplies:D1SE

Images are for reference only and show example products.

Electrical Characteristics

Input	Single-phase
Input Voltage Range[AC]	100 to 240Vac
Input Voltage Range[DC]	110 to 250Vdc
Efficiency	94.1% Typ.
Rated Output Voltage[DC]	48Vdc
Output Voltage Range[DC]	45 to 57Vdc
Maximum Output Current	5A
Maximum Average Current
Maximum Peak Current	6.5A
Maximum Output Power	240W
Maximum Average Power
Maximum Peak Power	312W

Package Type & Size

Package / Mounting	DIN rail
Industry Standard Size
Width(W)	44mm Nom. (1.73in Nom.)
Height(H)	125mm Nom. (4.92in Nom.)
Depth(D)	127mm Nom. (5.00in Nom.)
Weight	615g Typ. (1.4lbs Typ.)

Other

Operating Temp. Range	-25 to 70°C
Cooling	Convection
Safety Standard(Certified)	IEC61010-1 CSA C22.2 No.61010-1 EN61010-1 UL61010-1 IEC62368-1 CSA C22.2 No.62368-1-14 EN62368-1 UL62368-1 CE Mark BIS IS 13252 (Part 1)
Safety Standard(Conformed)
Remarks	This page only shows representative characteristics. Please refer to the technical data for detailed specifications and conditions.
