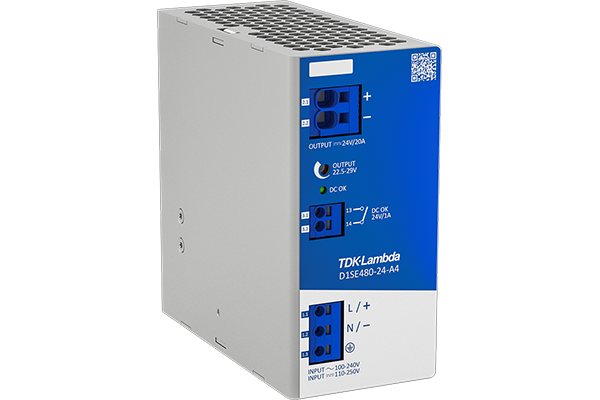

D1SE480-24-A4 New Product

Sales Region
Worldwide (except Japan)
Series
D1SE
Model
D1SE480
Status
ProductionProduction
Feature
Peak power capability
BIS Certified
Options
DIN rail mountable
DC-OK signal
Option Lineup
Please refer to here.
Recommended EMC Filter  ?
Accessories
Please refer to here.
Brand
TDK-Lambda
  • Switching Power Supply,AC-DC Power Supplies:D1SE

Images are for reference only and show example products.

Electrical Characteristics

Input
Single-phase
Input Voltage Range[AC]
100 to 240Vac
Input Voltage Range[DC]
110 to 250Vdc
Efficiency
95.1% Typ.
Rated Output Voltage[DC]
24Vdc
Output Voltage Range[DC]
22.5 to 29Vdc
Maximum Output Current
20A
Maximum Average Current
Maximum Peak Current
23A
Maximum Output Power
480W
Maximum Average Power
Maximum Peak Power
552W

Package Type & Size

Package / Mounting
DIN rail
Industry Standard Size
Width(W)
60mm Nom. (2.36in Nom.)
Height(H)
125mm Nom. (4.92in Nom.)
Depth(D)
129mm Nom. (5.08in Nom.)
Weight
900g Typ. (2.0lbs Typ.)

Other

Operating Temp. Range
-25 to 70°C
Cooling
Convection
Safety Standard(Certified)
IEC61010-1
CSA C22.2 No.61010-1
EN61010-1
UL61010-1
IEC62368-1
CSA C22.2 No.62368-1-14
EN62368-1
UL62368-1
CE Mark
BIS IS 13252 (Part 1)
Safety Standard(Conformed)
Remarks
This page only shows representative characteristics. Please refer to the technical data for detailed specifications and conditions.
