Capacitors for AC Output Filtering
Tech Notes
Products & Technologies

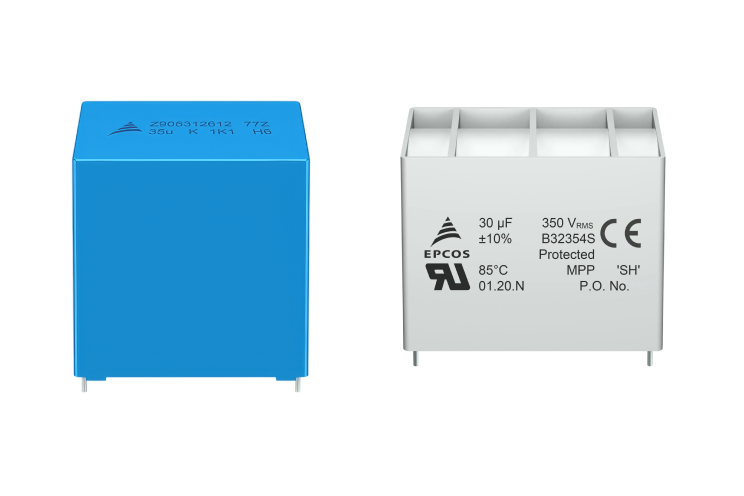

TDK Corporation (TSE:6762) has added the B32354S* series to its portfolio of metalized EPCOS polypropylene (MKP) capacitors for filter applications. The new devices, which feature a 4-pin design and a pitch of 52.5 mm, are rated for VRMS of 275 V AC or 350 V AC and cover a capacitance range from 10 μF to 40 μF. The maximum operating temperature is 85 °C.
TDK Corporation presents a new series of AC filter capacitors that are UL 810 approved at the component level and carry the CE mark. The capacitors of the B32354S3* series are designed for a rated voltage of 350 V AC and are available with capacitance values of 10 µF to 40 µF.
TDK Corporation has extended its EPCOS B32754* to B32758* series of AC filter capacitors. They now cover a range of voltages from 250 V AC to 400 V AC and offer capacitances of between 1 µF and 70 µF.
Other Contents
Technical Support Tools
Related Information
TDK Product Features
AC output filtering film capacitors are mainly applied in the filtering stage of UPS and solar inverters. TDK series offer a broad voltage range combined high ripple current capabilities for the harmonics filtering. Dielectric film design for enhanced self-healing, low ESR or with segmented film structure makes these series a reliable and long lifetime design options.
