B82747E6163A040

Product Status	Production
Type	B82747E6
Application	General use
Function / Feature	CommonCommon Mode UL1446UL1446 Insulation System
Number of Lines	Triple Choke
Brand	TDK
Environmental Compliance Click to learn more about these icons

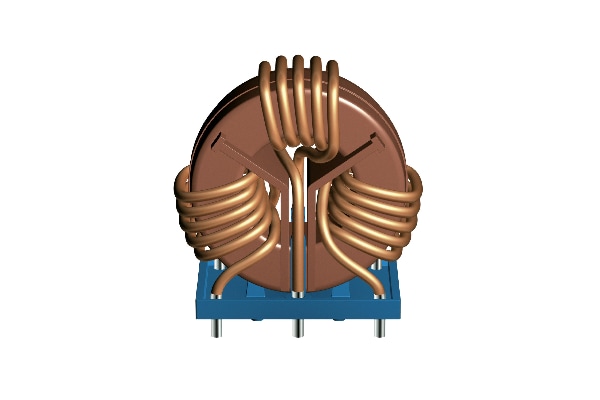

Power Line Chokes:B82747E6

Images are for reference only and show example products.

Design & Size

Design	Current-compensated ring core choke
Length	65.00mm Max.
Width	37.00mm Max.
Height	66.00mm Max.

Electrical Characteristics

Inductance	2.2mH
Rated Current	16A
Rated Temperature	70°C
DC Resistance (Typ.)	6mΩ
Rated Voltage [AC]	600Vrms 350Vrms
Rated Voltage [DC]

Other

Operating Temp. Range (Including Self-Temp. Rise)	-40 to 125°C
AEC-Q200	NO
UL File Number
UL1446 Insulation System	E320370: Class 155(F)
ENEC (VDE) File Number
Remarks	Recyclable UL 1446 Class 155(F) Insulation System
Further Details	Please refer to the data sheet
