Transponder Coils

TPL802727-722H

Applications
Automotive GradeAutomotive Grade
Feature
AEC-Q200AEC-Q200
X/Y CoilX/Y Coil
Type
TPL802727
Status
ObsoleteObsolete
Recommended Alternate Part No. : None
Discontinue Issue Date : May.28, 2020
Last Purchase Order Date : Mar.31, 2022
Last Shipment Date : Sep.30, 2022
Brand
TDK
  • Inductors.Transponder Coils:TPL802727
  • Inductors.Transponder Coils:TPL802727
  • tpl802727

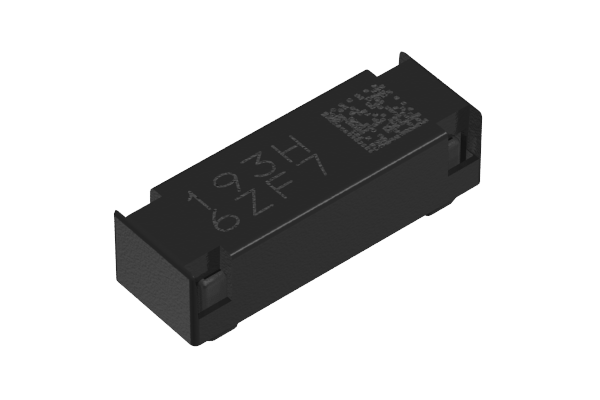

Images are for reference only and show example products.

Size

Length(L)
7.85mm ±0.15mm
Width(W)
2.70mm +0.20,-0.10mm
Thickness | Height
2.70mm ±0.20mm

Electrical Characteristics

Inductance
7.2mH ±3% at 125kHz
Working Frequency
125kHz
Q (Min.)
35 at 125kHz
Sensitivity (Typ.)
30mV/μT (Ref.) at 125kHz
Resonance Frequency (Min.)
2MHz
Resonance Frequency (Typ.)
2.5MHz
DC Resistance (Max.)
105Ω

Other

Operating Temp. Range (Including Self-Temp. Rise)
-40 to 125°C
Soldering Method
Reflow
AEC-Q200
YES
Packing
Embossed (Plastic)Taping [330mm Reel]
Package Quantity
2500pcs
Weight
0.14g
