Programmable AC Power Sources

GAC-PRO-02 New Product

Sales Region
Worldwide (except Japan)
Series
GENESYS AC
Model
GAC-PRO-02
Status
ProductionProduction
Option Lineup
Accessories
Brand
TDK-Lambda
  • Switching Power Supply,Programmable AC Power Sources: GENESYS AC

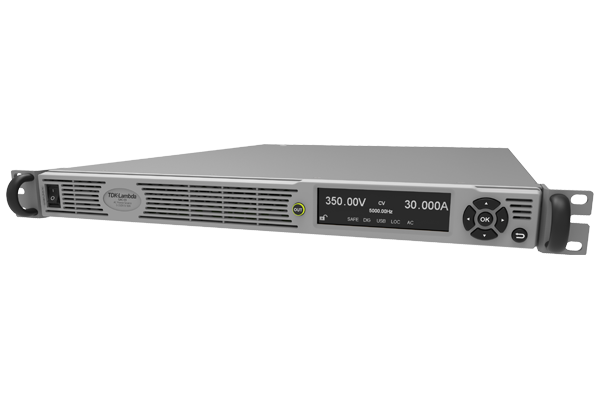

Images are for reference only and show example products.

Quick Product Finder

Click 'Configure Now' to build your AC power source
Configure Now

Electrical Characteristics

Output Modes
AC+DC Mode
Input Voltage Range
Single-phase 85 to 265Vac
3-phase 170 to 265Vac
3-phase 342 to 528Vac
Rated AC Power
2000VA
AC Output Voltage Range
0 to 350Vrms
Rated AC Output RMS Current
20Arms
Peak Current
120A
AC Output Frequency Range
16 to 5000Hz
DC Output Power
2000W
DC Output Voltage Range
-500 to 500Vdc
DC Output Current
20A

Package Type & Size

Package Type
1U Rack mount / Bench top
Width(W)
423mm Nom. (16.65in Nom.)
Height(H)
43.6mm Nom. (1.72in Nom.)
Depth(D)
544.5mm Nom. (21.44in Nom.)
Weight
8000g Typ.

Other

Interface Included
LAN
USB
RS-232
RS-485
Interface / Other Options
Avionics Standard Options
RTCA/DO 160
MIL-STD 704
A350 (Airbus ABD100.1.8.1)
Other Standard Options
IEC61000-4-11
IEC61000-4-13
MIL-STD-1399-300 PART 1
Operating Temp. Range
0 to 40°C
Safety Standard(Certified)
IEC61010-1
CSA C22.2 No.61010-1
EN61010-1
UL61010-1
Safety Standard(Conformed)
CE / UKCA Mark
Remarks
This page only shows representative characteristics. Please refer to the technical data for detailed specifications and conditions.
