INMP421

Product Status	Production (NRND)
Applications	Commercial Grade
Apps. Detail	Mobile Wearable Internet of Things Drone
Product Type	Digital Output (PDM)
Port Location	Bottom
Series	INMP
Brand	InvenSense
Environmental Compliance Click to learn more about these icons

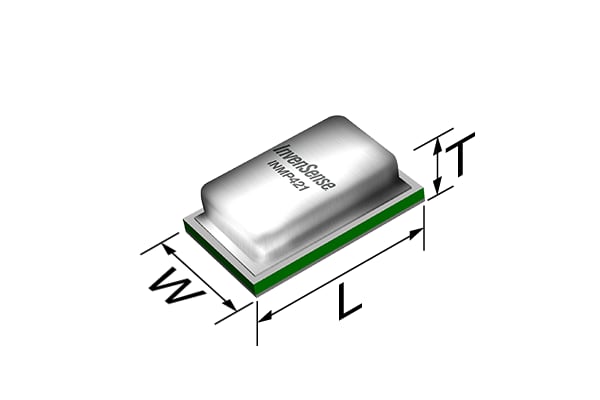

Images are for reference only and show example products.

Size

Length(L)	3.00mm ±0.10mm
Width(W)	4.00mm ±0.10mm
Thickness(T)	1.00mm ±0.10mm

Electrical Characteristics

Sensitivity	-26dB FS ±3dB FS at 1kHz, 94dB SPL
S/N Ratio [SNR] (Typ.)	61dBA
Sound Pressure Level	105dB at THD 3% Max., 1kHz
Acoustic Overload Point	120dB SPL at 10% THD
Total Harmonic Distortion [THD]	3% Max. at 105dB SPL, 1kHz
Lower Cutoff Frequency (Min.)	100Hz
Power Supply Rejection Ratio [PSPR] (Typ.)
Current Consumption [Icc] (Typ.)	650μA
