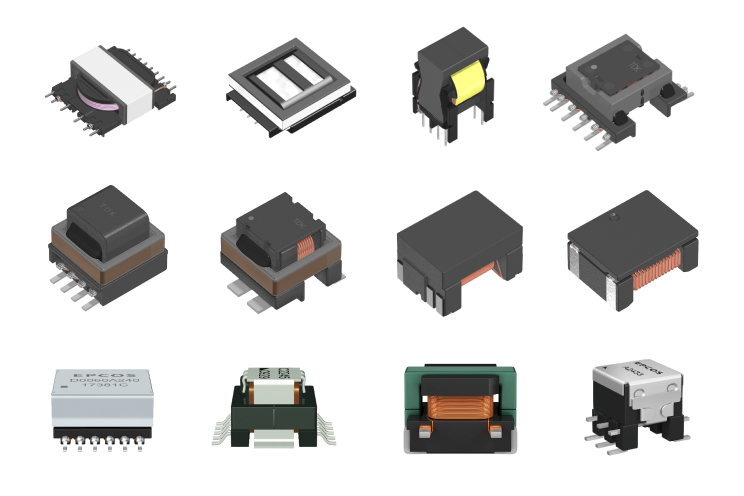

TDK Corporation (TSE:6762) unveils the EPCOS EP9 series (ordering code: B82804E), which is more compact than the existing E10EM series of surface-mount transformers designed specifically for IGBT and FET gate driver circuits. Engineered for high performance in demanding e-mobility and industrial applications with 500 V system voltage, these components offer exceptional insulation, minimal coupling capacitance, and high thermal resilience. With this new series, TDK is driving the green transformation towards a more electric and sustainable future.

The EP9 series is built on a MnZn ferrite core with SMD L-pin construction, delivering a height of just 11 mm and a footprint of 13 x 11 mm. These transformers operate across a wide temperature range of −40 °C to +150 °C, ensuring durability under harsh conditions. With a coupling capacitance of only 2 pF, complying with the AEC-Q200 Rev. E standard, and creepage and clearance of at least 5 mm, these surface-mount components are generally used in automotive applications and other demanding environments.

The transformers support topologies such as half-bridge and push-pull converters with typical operational frequency of 100 to 400 kHz and turns ratios optimized for specific applications. These components are available in tape-and-reel packaging, ensuring ease of assembly for high-volume production environments.

A sample kit is available under order number B82804X1, containing six transformers of each version.

TDK Corporation (TSE:6762) presents two new types of the EPCOS InsuGate series (B78541A). These compact SMT transformers with high working voltage are suitable for gate driver applications for IGBTs and MOSFETs in e-mobility (qualification according to AEC-Q200 as well as according to AQG vibration profile) and in industrial electronics. The components with a MnZn ferrite core are designed for operating frequencies of 100 kHz to 500 kHz and operating temperatures of -40 °C to +150 °C. Depending on the type, the transformation ratios of the windings are 1:1.08 (B78541A2467A003) or 1:1.07:0.6 (B78541A2492A003). With a low coupling capacitance of only 4 pF, the SMT transformers are also suitable for use with SiC or GaN semiconductors.

TDK Meister is an application software for Windows®, that can search TDK electronic components and display graphs for their characteristics. Using TDK Meister, you can easily select TDK electronic components that are optimum for electronic circuit design and EMC counter measure. In this article, overview and major functions of TDK Meister are introduced.

The formal name of Windows(R) is Microsoft(R) Windows(R) Operating System.<br>Microsoft(R) and Windows(R) are registered trademarks of Microsoft Corporation in the United States and/or other countries.

TDK Corporation (TSE:6762) presents the new B78302A* series of compact EPCOS transformers with innovative E5 cores for ultrasonic applications. It comprises three types with transformation ratios between 1:1:10.8 and 1:1:15.3. Depending on the type, the new transformers in SMD design offer inductance values between 2 mH and 4 mH and are suitable for frequencies from 50 kHz to 300 kHz. The AEC-Q200 qualified components have very compact dimensions of only 8.1 x 7.0 x 7.0 mm and are shielded by a counter-winding for better interference suppression. The permissible temperature range is between -40 °C and +125 °C.

With the spread of cloud computing and smartphones and the launch of 5G in 2020, the amount of data that moves on the internet is increasing as high-volume video and game data is added to existing documents, images, and sound data.
In addition, technologies are evolving, exemplified by AI, and a digital transformation (DX) is taking place as a result of the use of big data and the internet of things (IoT). To support these advances, however, large numbers of high-performance servers that can process large volumes of data will be needed. In conjunction with the increased performance of processors and various types of ICs, higher clock speeds of power supply ICs on server boards, high current power saving, miniaturization, noise countermeasures in data lines, and surge countermeasures have become urgent issues. Here, we introduce TDK products for addressing and solving these problems including the VLBU series of ferrite power inductors compatible with the high-efficiency needs of VR13 and VR14 applications, the FS series of DC-DC converters with embedded μPOL™, solutions using the ALT series of pulse transformers and ALC series of common mode filters and chokes, and chip varistors and ceramic transient voltage suppressors used for surge protection.

The evolution of sensing technology and communication network contribute to the realization of an Autonomous driving society and its growth. Ultrasonic parking assistant is a key sensor for automated driving and parking functions. Ultrasonic parking sensors were in use in Europe long before debate on automated driving became active. TDK has for many years supplied Piezo Disks and ultrasonic driver transformers for use with ultrasonic parking sensors. TDK also developed a multilayer ceramic chip capacitor that exhibits attenuating capacitance (ZL characteristics) under high-temperature environments that is suitable for resonant circuits with Piezo Disk. This article presents Piezo Disk, ultrasonic driver transformers, and MLCC with ZL characteristics.

As the electrification of the automotive progresses, the demand for motor generators is on the rise. There is also a trend towards integration of electric motors and inverters, and the requirements with regard to compact dimensions and resistance against heat and vibrations are becoming ever more severe, while high reliability is also an important factor. In some cases, wiring inductance can lead to high surge voltages which requires countermeasures such as suitable wiring design and snubber capacitors. At the same time, noise countermeasures are also essential.
