Compact SMT current sense transformers

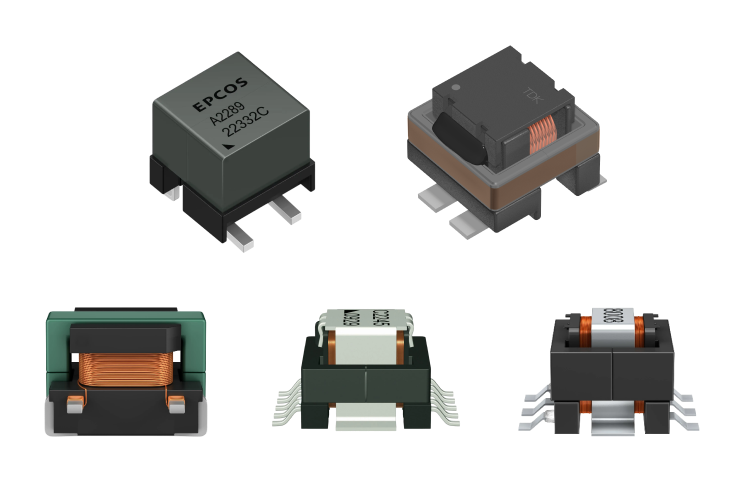

TDK Corporation presents a new series of compact EPCOS SMT current sense transformers. They are designed for measuring currents of up to 7 A at frequencies between 50 kHz and 1 MHz. The B82801A1* series comprises nine types that offer transformation ratios from 1:20 to 1:150 between the primary and secondary winding. The maximum DC resistance of the primary winding for all types is only 2.5 mΩ. Excellent reproducibility and reliability are ensured by highly automated production using laser welding technology.
Technical Support Tools
TDK Product Features
The various SMT types of current-sense transformers are available in five different dimensions. This series is available with a variety of turns ratios of 1:20 up to 1:200 and features very low DC resistance. Sensed current values at the primary winding cover a wide range between 7 A to 40 A.
