HWS Series

Features

Limited Lifetime Warranty
Very Conservative Electrolytic Capacitor Ratings
Class B Conducted and Radiated EMI
UL 508 Certified on Select Models

Benefits

Low Cost of Ownership
Long Service Life
Easier System EMC Compliance
Suitable For Industrial Control Equipmen

Models

Links

Technical Data

Overview

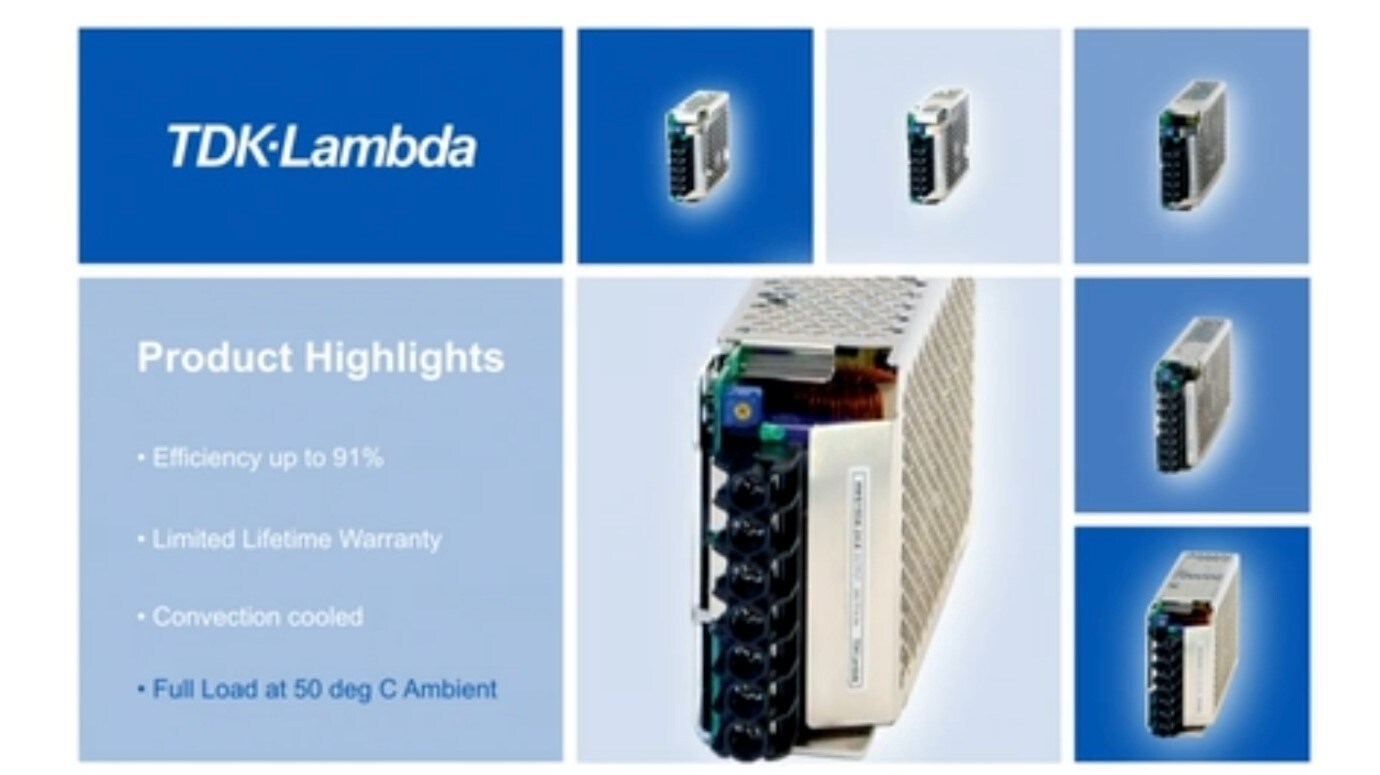

The ultra reliable, conservatively rated HWS series of 300W to 1500W AC-DC power supplies has a limited lifetime warranty, unique to the industry. The series accepts a wide range 85 to 265Vac input with output voltages from 3.3V to 48V. The products are certified to IEC 62368-1, UL 508 (select models) and are SEMI F47 compliant. They also meet conducted and radiated emission standards without additional filtering or shielding.

Model name	Power (W)	Input Voltage (VAC)	Output Voltage (VDC)
HWS15A	10 to 15.8	85 to 265	3.3, 5, 12, 15, 24, 48
HWS30A	20 to 31.2	85 to 265	3.3, 5, 12, 15, 24, 48
HWS50A	33 to 52.8	85 to 265	3.3, 5, 12, 15, 24, 48
HWS80A	52.8 to 81.6	85 to 265	3.3, 5, 12, 15, 24, 48
HWS100A	66 to 108	85 to 265	3.3, 5, 12, 15, 24, 48
HWS150A	99 to 158.4	85 to 265	3.3, 5, 12, 15, 24, 48
