CeraLink® Capacitors
Tech Notes
Products & Technologies
TDK Corporation (TSE:6762) has expanded its line of CeraLink capacitor series B58043 in the EIA 2220 footprint by adding two new 900 V types – one with standard termination (B58043I9563M052) and one with soft termination (B58043E9563M052). As electric vehicles with 800 V battery voltage are becoming more popular, these new components are obvious candidates because their optimal operating point is exactly at this voltage. While the existing 500 V CeraLink series is aimed at 400 V inverters equipped with gallium nitride (GaN) transistors or silicon MOSFETs, the new 900 V parts with a withstanding voltage of more than 1 kV are targeted at 800 V inverters equipped with silicon carbide (SiC) MOSFETs or silicon IGBTs.
TDK Corporation (TSE:6762) has expanded its tried-and-tested range of CeraLink capacitors. Previously, only large, ready-to-fit sizes were available. Now, smaller versions with the classic chip design are included in the portfolio in order to increase the areas of application. The new portfolio starts with the EIA 2220 size, measuring 5.7 x 5 x 1.4 mm, is intended for 500 V, and offers a capacitance of 250 nF with very low parasitic coefficients. The new capacitors with the ordering code B58043* are available with both standard and soft termination. TDK will add further designs and voltage classes in the future.

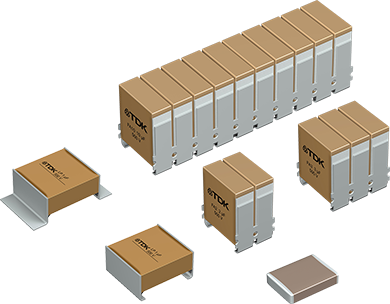

capacitors with CeraLink FA types in modular flex-assembly technology. This space-saving design connects two, three or ten identical capacitors in parallel over the same terminals in order to increase the capacitance.
Applications & Cases
As the electrification of the automotive progresses, the demand for motor generators is on the rise. There is also a trend towards integration of electric motors and inverters, and the requirements with regard to compact dimensions and resistance against heat and vibrations are becoming ever more severe, while high reliability is also an important factor. In some cases, wiring inductance can lead to high surge voltages which requires countermeasures such as suitable wiring design and snubber capacitors. At the same time, noise countermeasures are also essential.
Industry 4.0 is being shaped by the continuing rise in the degree of automation, by the digitalization that includes the Industrial Internet of Things (IIoT) and by high levels of energy efficiency. In this respect, TDK presents a wide range of innovative EPCOS and TDK key components.
One of the well-established key requirements in solar inverters is their high efficiency. But also, their costs, size and weight are subject to continuous improvements. One approach to better fulfil all these demanding requirements simultaneously is the use of multilevel topologies.Technical Support Tools
Related Information
TDK Product Features
CeraLink® capacitors are a highly compact solution for snubber, filter, flying capacitor and DC-links to name a few functions. In contrast to conventional ceramic capacitors, CeraLink capacitors have their maximum capacitance at their specified operating point (positive bias/anti-ferroelectric behavior), and this even increases proportionately to the share of the ripple voltage, making it the ideal capacitor for fast switching wide bandgap (WBG) semiconductors like SiC and GaN.
Designed as compact components optimized for high frequency and high-temperature power electronic applications, it provides engineers a solution for demanding needs like very tight space requirements, high current rating, high capacitance density and high operating temperatures.
