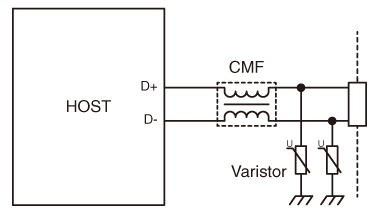

Signal Line Common Mode Filters/Chokes, ESD Protection Devices(Automotive Grade)

• Click here for commercial grade
• PDF

Product	Dimensions- code JIS[EIA]	Series		Classical CAN	CAN/CAN-FD	FlexRay	USB 2.0	USB 3.2 Gen1	USB 3.2 Gen2	One-pair Ethernet 10BASE-T1s	One-pair Ethernet 100BASE-T1	One-Pair Ethernet 1000BASE-T1
				1 Mbps	2-8 Mbps	10 Mbps	480 Mbps	5Gbps/line	10Gbps/line	10Mbps	100Mbps	1000Mbps
Common Mode Filters/Chokes	1210 (0504)	MCZ series		N/A	N/A	N/A	MCZ1210AH900L2TD0G	MCZ1210DH500CPTD25	MCZ1210DH500CPTD25	N/A	N/A	N/A
	2012 (0805)	ACM2012 series		N/A	N/A	N/A	ACM2012-900-2P-T001	ACM2012H-900-2P-T03	ACM2012H-900-2P-T03	N/A	N/A	N/A
	3225 (1210)	ACT1210 series		ACT1210 Type	ACT1210 Type (Up to 2Mbps) ACT1210D Type (2~8Mbps)	ACT1210R-101-2P-TL00	N/A	N/A	N/A	ACT1210E-241-2P-TL00	ACT1210L-201-2P-TL00	ACT1210G-800-2P-TL10
	4532 (1812)	ACT45 series		ACT45B TypeACT45C Type	ACT45B Type (Up to 2Mbps)ACT45C Type (Up to 2Mbps)	ACT45R-101-2P-TL001	N/A	N/A	N/A	N/A	N/A	N/A
Chip Varistors	1005 [0402]			AVRH10C270KT150NA8	AVRH10C270KT150NA8	AVRH10C270KT150NA8	AVRL101D3R3FTA	N/A	N/A	AVRH10C221KT1R5YA8	AVRH10C101KT4R7FA8	AVRH10C101KT1R1NE8
												AVRH10C101KT1R2YE8
				B72590E0170S160 (CT0402S17AG)	B72590E0170S160 (CT0402S17AG)	B72590E0170S160 (CT0402S17AG)				AVRH10C101KT1R2YE8	AVRH10C101KT4R7YA8	AVRH10C221KT1R5YA8
											B72590P8200S060 (CT0402S20AHSG_P)	In Development ●Contact
											B72590P8400S060 (CT0402S40AHSG_P)
	1608 [0603]			AVR-M1608C270MTAAB	AVR-M1608C270MTABB	AVR-M1608C270MTABB	AVRL161D3R3FTA	N/A	N/A	N/A	B72500P8200S060 (CT0603S20AHSG_P)	In Development ●Contact
				B72500E8140S160 (CT0603S14AHSG)	B72500E8250L060 (CT0603L25HSG)	B72500E8250L060 (CT0603L25HSG)
											B72500P8400S060 (CT0603S40AHSG_P)
	1608 [0603] 2 in 1 Array			AVRH16A2C270KT200NA8	AVRH16A2C270KT200NA8	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	1220 [0508] 2 in 1 Array			B72812Q1120S160 (CA05M2S10T100HG)	B72812Q1120S160 (CA05M2S10T100HG)	B72812Q1120S160 (CA05M2S10T100HG)	N/A	N/A	N/A	N/A	N/A	N/A
